QUESTION 32
An electrical designer needs to directly connect panel B to panel A without a breaker. Panel A’s load must reflect the entire load from panel B. Which conditions must be met to ensure that panel B is correctly connected to panel A?

Both panels are assigned to the same switchboard, and the subfeed lug breaker option is selected.

Both panels are assigned to the same distribution system, and the circuit subfeed panel type option is selected.

Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.

Both panels are connected via a transformer, and the connection type is set to feed through lugs.

In Autodesk Revit Electrical Design, when an electrical designer needs to directly connect Panel B to Panel A without a breaker-such that Panel A’s load includes the total load from Panel B-the correct method is to configure both panels to use the same distribution system and to set Panel B’s connection type to Feed Through Lugs.
According to the Autodesk Revit MEP User Guide, Chapter 17: Electrical Systems, under “Creating Power and Lighting Circuits” and “Panel Properties” sections:
“When connecting panels in series, ensure both devices share the same distribution system. If a subpanel is required to pass its total load through to another panel without circuit protection, specify the connection type as Feed Through Lugs. This connection allows the upstream panel to include the total connected load from the subpanel in its own load summary.” The feed-through lugs configuration enables the second panel (Panel B) to be electrically tied to the first (Panel A) as though it were an extension of the same bus. Unlike breaker or main-lug-only setups, the feed-through configuration does not insert a protective breaker between the two panels. Instead, it provides a continuous feeder connection where the parent panel’s load schedule automatically aggregates the downstream panel’s total load.
This setting is found in Revit’s Properties Palette for electrical equipment:
Under Electrical – Circuiting, the designer must ensure both panels use the same Distribution System (e.g., 208Y/120V 3 4W).
Then, under Connection Type, select Feed Through Lugs.
The Smithsonian Facilities Revit Template Electrical Standards Guide also confirms this best practice:
“Feed-through panels are used when a subpanel’s total load must be reported in the main distribution panel without additional breakers. Both panels must share identical voltage and phase configurations within the same distribution system.” Why the Other Options Are Incorrect:
A . The “subfeed lug breaker” introduces a breaker, contradicting the requirement of no breaker.
B . “Circuit subfeed panel type” is not a standard Revit configuration; Revit uses connection types instead.
D . Transformers alter the voltage distribution; the question specifies a direct connection within the same system.
Therefore, the correct configuration that meets all design and load reflection requirements is:
✅ C. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.
References:
Autodesk Revit MEP User Guide – Chapter 17 “Electrical Systems,” Sections: “Creating Power and Lighting Circuits” and “Panel Properties,” pp. 420-426 Autodesk Revit Electrical Design Essentials – Topic: “Feed-Through Connections and Subpanel Load Reflection” Smithsonian Facilities Revit Template User’s Guide – Section 9.3 “Panel Configuration and Feed-Through Connections,” p. 96

QUESTION 33
A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?

Use the Manage Templates command to edit and apply the template changes to all panel schedules.

Select all panel schedules in the Project Browser, right-click and choose Apply Template Properties, and select the desired template.

Assign the desired view template to the panel schedules in the Properties panel.

Edit a panel schedule, right-click and choose Duplicate View, and duplicate changes lo desired panel schedules.

QUESTION 34
An electrical designer Is working on a workshared model.
Which two worksharing display settings can the designer use to visualize model elements that have no ownership? (Select two.)

Worksets

Checkout Status

Gray Inactive Worksets

Model Updates

Owners

QUESTION 35

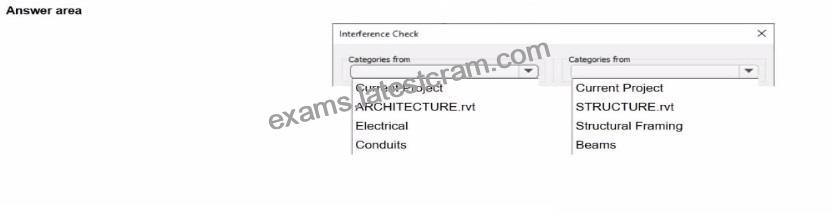

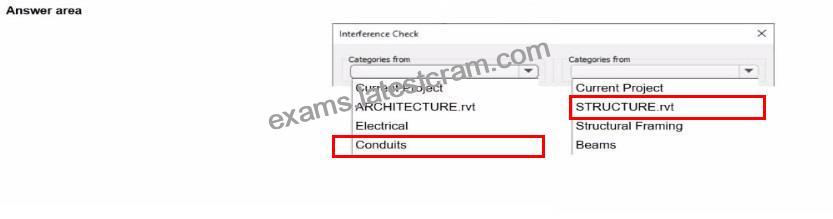

An electrical designer needs to check for Interferences between conduit in the host model and beams in a linked structure model in the Interference Check dialog, select the items that the designer must select to perform the interference check. (Select two.)

QUESTION 36
An electrical designer is routing conduit through a building model to coordinate with other disciplines, the electrical designer wants to view selected components in a cropped 3D view.
With the conduit components selected, which tool should the designer use?

Selection Box

Default 3D View

Scope Box

Section Box

QUESTION 37
What two ways can an electrical designer copy a cable tray type from a project to a template? (Select two.)

1. Open the project and the template In separate Revit sessions.
2. In the project, copy the cable tray to the clipboard.
3. Switch to the template and paste the cable tray in a view.

1. Open both the project and the template in the same Revit session.
2. In the project, copy the cable tray to the clipboard.
3. Switch to the template and paste the cable tray in a view.

1 Open both the project and the template in the same Revit session.
2. In the template, activate Transfer Project Standards.
3. Choose to copy from the project and then select Cable Tray Types.

1. Open both the project and the template in the same Revit session.
2. In the project, select the cable tray and click Edit Family.
3. Click Load into Project and select the template to load the family into.

1. Open the project and the template in separate Revit sessions.
2. In the template, activate Transfer Project Standards.
3. Choose to copy from the project and then select Cable Tray Types.

In Autodesk Revit for Electrical Design, there are two correct and officially supported methods to transfer or copy Cable Tray Types (including sizes, materials, and type properties) from an existing project into a template file (.rte). These methods ensure that all type definitions, fittings, and related MEP settings are preserved.
✅ Option B (Clipboard Copy within the same Revit session)
1. Open both the project and the template in the same Revit session.
2. In the project, copy the cable tray to the clipboard.
3. Switch to the template and paste the cable tray in a view.
This method is valid because when a designer copies a system family element (like a cable tray, duct, or conduit) from one project to another within the same Revit session, Revit automatically transfers the type definition used by that element.
According to the Revit MEP User’s Guide, Chapter 17 – Electrical Systems:
“Copying a cable tray from one project to another carries its type properties with it, including size, material, and fittings, as Revit automatically loads the associated system family definition.” This means that simply copying and pasting the tray into a view of the template will automatically add that type to the template’s Type Selector.
✅ Option C (Transfer Project Standards)
1. Open both the project and the template in the same Revit session.
2. In the template, activate Transfer Project Standards.
3. Choose to copy from the project and then select Cable Tray Types.
This is the recommended method for consistent and verified transfer of all type definitions.
From the same guide under Panel Schedule Templates and System Types Management:
“Use Transfer Project Standards to copy system family types, such as Cable Tray Types, Conduit Types, and related MEP settings, between projects or into templates.” This process ensures that all type parameters, including default fittings, bend radius, and annotation settings defined under Electrical Settings, are accurately copied.
References:
Autodesk Revit MEP User’s Guide – Chapter 17 “Electrical Systems,” pp. 407-409 (Cable Tray Management and Transfer Standards) Autodesk Revit MEP 2011 What’s New – Section “Copy Styles Using Transfer Project Standards” Smithsonian Facilities Revit Template User’s Guide – “Transferring MEP Types into Templates,” pp. 68-71

QUESTION 38
When creating a power circuit, which two rules are enforced by the program? (Select two.)

Items on the circuit must be in the same model.

Items on the circuit must have an apparent load value assigned.

Items on the circuit must be assigned the same voltage definition

Items on the circuit must be in the same workset.

Items on the circuit must be associated with a transformer.

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – Electrical Systems), when creating power and lighting circuits, Revit enforces specific compatibility rules to ensure the accuracy and integrity of electrical systems. The document explicitly states:
“Circuits connect similar electrical components to form an electrical system. Once created, you can edit circuits to add or remove components, connect a circuit to a panel, add wiring runs, and view circuit and panel properties… A component can be connected in a circuit if it is compatible with the other components in the circuit and if it has an available connector.” Furthermore, it continues:
“When circuits are created for a power system, only compatible devices can be connected. All devices in a circuit must specify the same distribution system (voltage and number of poles). The distribution system can be specified by type parameters or instance parameters. When you create a circuit where all the devices have the distribution system specified as instance parameters, Revit MEP displays a Specify Circuit Information dialog where you can specify values for the number of poles and voltage prior to creating the circuit.” Additionally, the documentation clarifies that circuits must exist within the same project model to maintain system logic and consistency. It explains that “circuits connect similar electrical components within a particular system,” which implicitly enforces that items must reside in the same model file. Revit’s data structure does not allow cross-model circuit connections, since circuit logic, load calculations, and panel assignments depend on shared model parameters and hosted relationships between electrical families.
Therefore, the two rules enforced by Revit when creating a power circuit are:
A). Items on the circuit must be in the same model.
This ensures data integrity and consistency across electrical systems, as circuits cannot span multiple linked models.
C). Items on the circuit must be assigned the same voltage definition.
This guarantees that only devices with matching voltage and pole configurations can be logically and electrically connected to the same circuit.
Other options, such as requiring apparent load values or association with transformers, are not mandatory for circuit creation-they are design considerations applied after circuits are established. Worksets (option D) manage collaboration, not circuit validity.
Verified Reference:
Autodesk Revit MEP 2011 User’s Guide, Chapter 17 “Electrical Systems,” Sections Creating Circuits and Creating Power and Lighting Circuits, pp. 461-463.

QUESTION 39
Refer to exhibits.

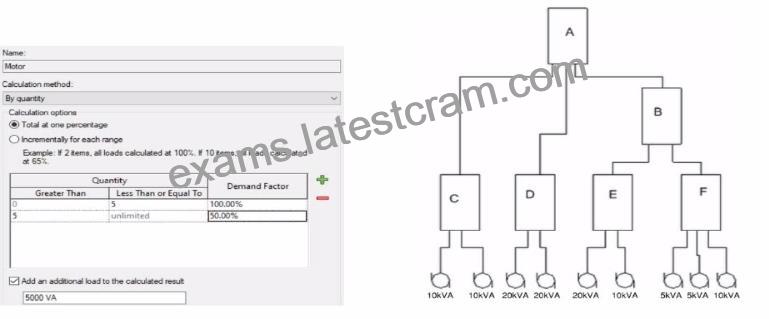

What is the demand load on Panel B?

65kVA

55kVA

30kVA

40kVA

QUESTION 40
Refer to exhibit.

An electrical designer tries to place a generic annotation family in a data device family. The designer receives the error message as shown. What should the designer do?

Change the Detail Level to Coarse.

Edit the generic annotation family and set it to Shared.

Set the view to the Ref. Level.

Select the Maintain Annotation Orientation parameter checkbox

QUESTION 41
Refer to exhibits.

(The image Is presented in Imperial units: 1 In = 25 mm (Metric units rounded].) An electrical designer creates a lighting fixture family with the following types and then saves the family.

QUESTION 42
Refer to exhibit.

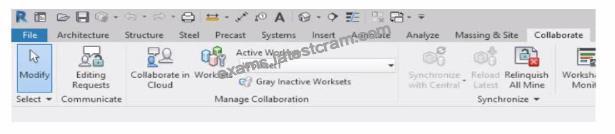

Why is Synchronize with Central disabled?
After enabling collaboration for a project, an electrical designer observes the ribbon.

The designer has unrelinquished elements.

The designer has unresolved editing requests.

The central model is unavailable or not found.

The designer is working in the central model.

QUESTION 43
Which Revit command is used to map a Keynote Table file?

Keynote Manager

Element Keynote

Keynote Legend

Keynoting Settings

QUESTION 44
Exhibit.

An electrical designer creates a panel schedule. Which Electrical Equipment parameter defines the default name of the panel schedule view?

Type Mark

Mark

Description

Panel Name

In Autodesk Revit for Electrical Design, when a designer creates a panel schedule, the default name of the panel schedule view is automatically derived from the Panel Name parameter of the Electrical Equipment family to which the circuits are assigned.
According to the Revit MEP User’s Guide (Electrical Systems section: Panel Schedules):
“When you create a panel schedule, Revit uses the Panel Name parameter of the electrical equipment to define the default schedule name. The Panel Name identifies the distribution panel that supplies the circuits. This name appears in both the Panel Schedule view and in circuit information tags.”
– Revit MEP User’s Guide, Chapter 17: Electrical Systems – Panel Schedules The Panel Name is a critical electrical equipment instance parameter located in the Electrical – Circuiting group of properties.
It appears in both the Electrical Equipment Properties Palette and the Panel Schedule Header. This name can later be modified manually, but by default, it directly controls the naming convention of the generated schedule.
In contrast:
A . Type Mark – identifies types within the family for documentation and does not control schedule naming.
B . Mark – a unique instance identifier often used for tags, but not for panel schedule view naming.
C . Description – provides descriptive text only for documentation or labeling.
D . Panel Name – correctly defines and drives the default schedule view name for panels and circuits.
When a panel (electrical equipment) is placed in the model and circuits are connected, Revit generates a new Panel Schedule View automatically titled using the value entered in the Panel Name field (e.g., “Panel LP-1”). This ensures consistency between the modeled equipment and the schedule documentation.
Verified Reference Extracts from Revit for Electrical Design Documentation:
Autodesk Revit MEP User’s Guide (2011), Chapter 17: Electrical Systems – Creating and Editing Panel Schedules:
“The name of the panel schedule view is determined by the Panel Name property of the electrical equipment.” Revit MEP Electrical Design Training Manual, Module: Electrical Equipment and Panel Schedules:
“Panel Name is used by Revit as the default identifier for any panel schedule view created for that equipment.”

QUESTION 45
Exhibit.

An electrical designer is working within a workshared electrical model The designer reloads the linked architectural model and receives the message as shown in the exhibit What does this message indicate?

There is a new interference with the architectural model.

There is a new coordination message within the architectural model.

An elements host within the architectural model has changed.

A monitored element in the architectural model has changed.

QUESTION 46
Refer to exhibit.

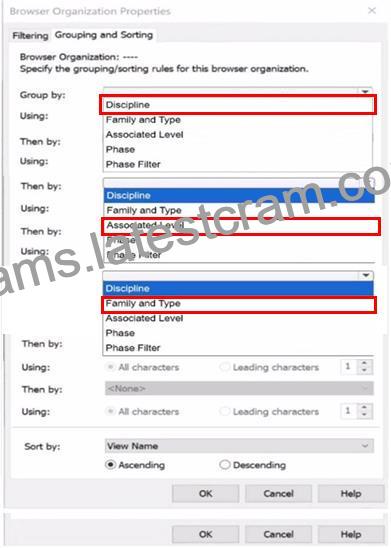

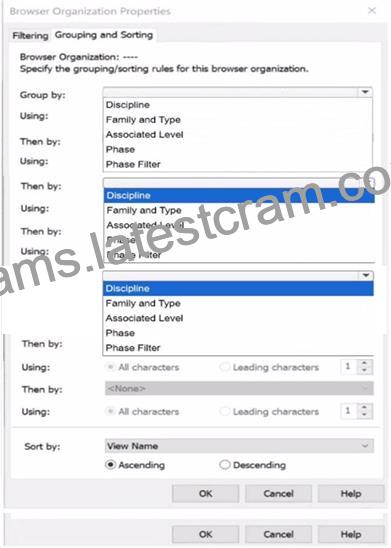

An electrical designer wants to organize the Protect Browser as shown in the exhibit. Select the correct options in order to achieve the desired organization. (Select three.)

QUESTION 47
An electrical designer needs to add a drafting view to a model from another project. What is the method to do this?

Select Transfer Project Standards, select the desired project, and then select the drafting view.

Select Open, select the desired project, right-click the desired drafting view, and then copy/paste

Select Link Revit, browse to the desired model, and then select desired drafting view

Select Insert from File, select Insert Views from File, browse to the desired project, and then select the drafting view.

QUESTION 48
Refer to exhibit.

An electrical designer wants to place electrical equipment on the pad.
How should the component be aligned to the pad before placement?

Start the Align tool. tab to select the object edge, and then select the equipment edge.

Start the Align tool and select the edges to be aligned.

Place the cursor over an edge of the object and then press Spacebar.

Place the cursor anywhere over the object and then press Spacebar.

QUESTION 49
An electrical designer has noticed lighting fixtures present in an architectural linked model. Which tool should be used to place an instance of those fixtures in the current electrical model while maintaining the position from the architectural model?

Copy/Monitor

Coordination Review

Reconcile Hosting

Reload Latest

QUESTION 50
Refer to exhibit.

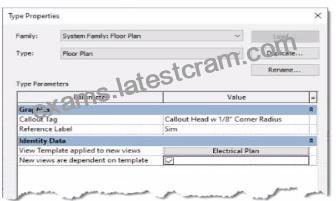

An electrical designer is reviewing the Type Properties for a floor plan view. How will the view behove when creating a new floor plan?

The Electrical Plan view template will be assigned to a new floor plan view created with the Floor Plan tool with the Floor Plan type selected

Creating a new floor plan view using the Floor Plan tool with the Floor Plan type selected will create a new Electrical Plan view template.

When duplicating a floor plan view of any type, the Electrical Plan view template will be assigned to the new floor plan view.

A new floor plan view created by duplicating a floor plan view of the Floor Plan type will be duplicated as a dependent view.

The exhibit shown displays the Type Properties dialog box for a System Family: Floor Plan view type. Within the “Identity Data” group, there are two critical parameters that govern the behavior of new views created from this view type:
“View Template applied to new views”
“New views are dependent on template”
According to Autodesk Revit’s documentation in the Revit MEP User’s Guide (Chapter 48 “Views and View Templates” and Chapter 49 “Preparing Construction Documents”):
“When a view template is assigned to a view type through the Type Properties dialog, any new view created from that view type automatically receives the defined view template. This ensures consistent visibility, graphics, and discipline settings for all new views.” In this image, the parameter “View Template applied to new views” is set to Electrical Plan, and “New views are dependent on template” is checked. This means that any new floor plan created using this type will automatically have the Electrical Plan template applied, and the view will be dependent on that template, meaning it inherits all its visibility and annotation control settings.
This ensures that all electrical floor plan views generated are standardized and visually consistent, a fundamental practice in Revit Electrical Design workflows, as described in the Smithsonian Facilities Revit Template User’s Guide:
“Assigning a default view template to a view type (e.g., Electrical Plan) ensures every new view created follows organizational and graphical standards without manual setup.” Option A matches this behavior exactly.
Option B is incorrect** because Revit does not create a new template automatically.
Option C is incorrect** because duplication of an existing view does not reassign templates by type.
Option D is incorrect** because dependent view creation requires a specific “Duplicate as Dependent” command, not this setting.
References:
Autodesk Revit MEP User’s Guide – Chapter 48 “Views and View Templates,” pp. 1112-1115 Smithsonian Facilities Revit Template User’s Guide – Section 2.8.1 “View Types and View Templates,” p. 30 Autodesk Revit Electrical Design Essentials – View Template Application and Management Section

QUESTION 51
Refer to exhibit.
(The Image is presented in Imperial units: 1 In = 25 mm [Metric units rounded).)

What is the electrical designer trying to do as shown in the exhibit?

Add Cable Tray

Place Parallel Conduits

Array Conduit

Place Multiple Pipe

The exhibit shown in the image is taken directly from the Revit MEP Electrical Systems workspace, specifically from the Parallel Conduits command interface. This dialog box appears when the designer activates the Place Parallel Conduits tool in the Systems tab → Electrical panel → Conduit dropdown → Parallel Conduits.
In this interface, the designer can specify:
Horizontal Number / Offset – defines how many conduits will be created horizontally and their spacing.
Vertical Number / Offset – defines how many conduits will be created vertically and their spacing.
Bend Radius Options:
Same Bend Radius – all conduits use identical bend radii.
Concentric Bend Radius – conduits bend concentrically around a common center point.
According to Autodesk’s Revit MEP 2011 User’s Guide (Chapter 18, Electrical Systems – Conduit Layout):
“The Parallel Conduits tool allows you to create multiple conduits side-by-side at the same time.
You can specify the number of conduits horizontally and vertically, as well as the offset between them.
You can also define whether bends have the same bend radius or concentric bend radii.”
– Revit MEP User’s Guide, Electrical Systems, Section: Conduit Layout
This tool is used when electrical designers need to route groups of conduits that run in parallel-such as power and data conduits running between panels or equipment racks.
The Concentric Bend Radius option (as shown in the exhibit) ensures all conduit bends share a common center, which is critical for maintaining uniformity in conduit sweeps and avoiding clashes during coordination.
Therefore:
A . Add Cable Tray – incorrect; the cable tray tool is separate and does not use bend radius options.
C . Array Conduit – incorrect; arraying is a different geometric function not specific to conduit routing.
D . Place Multiple Pipe – incorrect; applies to mechanical piping systems, not electrical conduits.
The display of Concentric Bend Radius, Horizontal Number, Vertical Number, and Offset confirms that the designer is using the Parallel Conduit placement tool.
Verified Reference Extracts from Revit Electrical Design Documentation:
Autodesk Revit MEP User’s Guide (2011) – Electrical Systems → Conduit Layout → “Parallel Conduits Tool” description.
Autodesk Revit MEP Training Curriculum – Electrical Module, Exercise 6.3 “Placing Parallel Conduits,” which illustrates the same interface for bend radius configuration.

QUESTION 52
Which feature shows which user created 3n element?

Gray Inactive Worksets

Worksharing display modes

Show History

Worksets dialog

QUESTION 53
Refer to exhibit.

The exhibit is a lighting fixture family in the Family Editor environment and the light source is selected.
An electrical designer has downloaded a photometric web tile in IES format from a manufacturer’s website for use within this lighting fixture family.

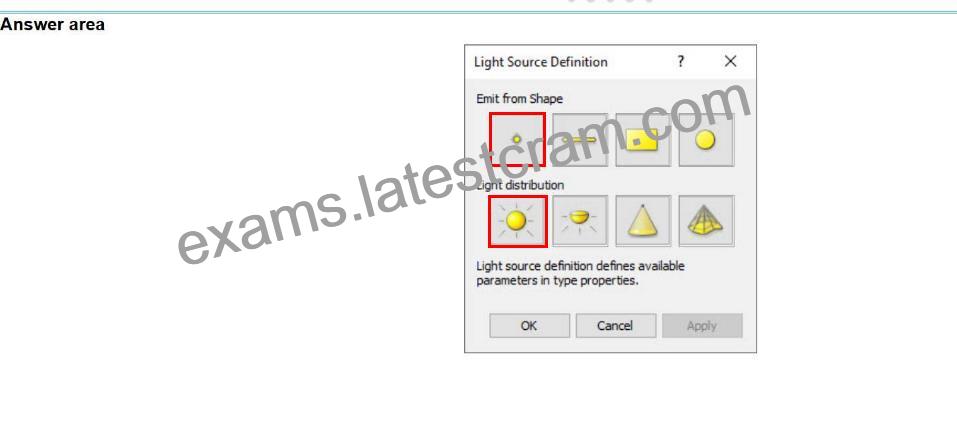

Define the light source’s Emit Shape and Light Distribution for use with the photometric web (IES) file. (Select two in the answer area.)

QUESTION 54
How can an electrical designer see changes from other users without saving their own work to the central model?

Relinquish All Mine

Reload Latest

Manage Worksets

Worksharing Display

In Autodesk Revit, particularly for electrical and MEP design disciplines using a workshared model, the command “Reload Latest” allows a designer to see changes made by other users without saving or publishing their own work to the central model. This tool ensures that while the designer continues to work locally, their environment stays updated with the latest modifications made by colleagues.
According to the Autodesk Revit MEP User Guide (Chapter 54 – Working in a Team), under the section Loading Updates from the Central Model, it states:
“As you work, you can see the changes other team members have made to the project after they have been synchronized with the central model. You can load updates from the central model without publishing your changes to the central model.
In your local file, click Collaborate tab ➤ Synchronize panel ➤ (Reload Latest).” This confirms that the Reload Latest command refreshes your local file with any modifications from the central file that others have synchronized, but it does not send your local changes back. It is a critical feature for coordination in a team environment, especially when multiple designers-such as electrical, mechanical, and structural engineers-are contributing simultaneously to a shared BIM model.
By contrast:
A . Relinquish All Mine only releases ownership of elements but doesn’t update the local model.
C . Manage Worksets is for controlling visibility and editability of worksets.
D . Worksharing Display visually identifies ownership and status but doesn’t refresh model data.
Therefore, when an electrical designer needs to review updates from others (for example, when a lighting layout needs coordination with architectural ceiling adjustments), the proper workflow is to use Reload Latest, ensuring all new information from the central model appears instantly without saving or affecting their current unsaved edits.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 54: Working in a Team, “Loading Updates from the Central Model,” pp. 1332-1333.
Autodesk Revit Structure User’s Guide, Chapter 49: Working in a Team, “Loading Updates from the Central Model,” p. 1230.
Smithsonian Revit Template Guide (2021), Section 6.3.1 How Worksharing Works, confirming synchronization and reloading behavior for shared Revit environments.

RVT_ELEC_01101 Dumps To Pass Autodesk Certified Professional Exam in One Day: https://www.latestcram.com/RVT_ELEC_01101-exam-cram-questions.html

Free Cram & Latest Exams Dumps

Updated Mar-2026 Exam RVT_ELEC_01101 Dumps – Pass Your Certification Exam [Q32-Q54]

Autodesk RVT_ELEC_01101 Exam Syllabus Topics:

leave a comment Cancel reply

Recent Posts

Archives

Categories
