QUESTION 68

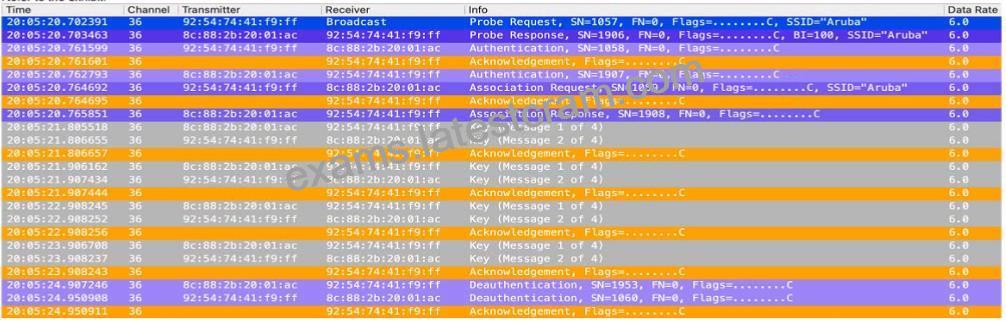

Refer to the exhibit.

Which statement is true?

The client performed passive scanning

The client is using BSS Fast Transition

The client is failing 802.1X authentication

The client used an incorrect passphrase

QUESTION 69
A customer would like to allow their IT Helpdesk to configure IoT devices to connect to a single SSID using a unique PSK that other devices cannot use.
Which solution would you recommend?

MPSK AES with HPE Aruba Networking ClearPass

MPSK AES with HPE Aruba Networking Central Cloud Authentication

MPSK Local

MPSK AES with MAC Auth

Comprehensive and Detailed Explanation From Exact Extract of HPE Aruba Networking Switching:
The requirement in this question is to allow IT staff to provision unique pre-shared keys (PSKs) for each IoT device on a single SSID, ensuring that one device’s PSK cannot be used by another. This is the definition of Multi-Pre-Shared Key (MPSK) functionality.
HPE Aruba Networking supports three main MPSK deployment methods:
* MPSK Local – Keys are defined locally on the AP or gateway; no external integration.
* MPSK with ClearPass – Keys are managed and validated via ClearPass Policy Manager.
* MPSK with Cloud Authentication – Keys are generated, stored, and managed natively through Aruba Central Cloud Authentication.
In this scenario, the IT Helpdesk wants a simplified, cloud-based method to generate and manage per-device unique PSKs without needing a ClearPass deployment. This aligns directly with MPSK AES with HPE Aruba Networking Central Cloud Authentication.
Exact Extract from HPE Aruba Networking Switching and Central Documentation:
“MPSK with Cloud Authentication allows administrators to configure a single SSID where each device is assigned a unique PSK. The PSKs are securely stored and validated using Aruba Central’s cloud-based authentication service.”
“Each PSK is tied to a specific client identity. If another device attempts to connect using the same PSK, the authentication will fail.”
“This method simplifies onboarding of IoT and headless devices while maintaining security equivalent to
802.1X.”
Thus, the correct recommendation is MPSK AES with Aruba Central Cloud Authentication, which fully supports per-device key uniqueness, centralized management, and cloud-based authentication-ideal for IoT device onboarding.
Why the Other Options Are Incorrect:
* A. MPSK AES with ClearPass:Valid and secure, but requires an on-prem ClearPass Policy Manager deployment. The question specifies a simpler method for IT Helpdesk to manage keys directly, which Cloud Authentication provides natively.
“ClearPass MPSK requires policy manager integration; Aruba Central Cloud Authentication provides a simpler cloud-native alternative.”
* C. MPSK Local:Suitable for small static environments, but not scalable and requires manual key creation on the AP or gateway. Does not allow IT staff to easily generate new keys per device via Central.
“MPSK Local does not support centralized lifecycle management or key revocation.”
* D. MPSK AES with MAC Auth:MPSK already handles per-device authentication via unique keys; MAC authentication is unnecessary and less secure.
“MAC authentication is an alternate method for non-802.1X devices but is not required with MPSK.” References of HPE Aruba Networking Switching Documents or Study Guide:
* Aruba Central Cloud Authentication and MPSK Deployment Guide – “Configuring MPSK AES with Cloud Authentication.”
* Aruba Wi-Fi 6 and IoT Integration Best Practices Guide – “Securing IoT with Cloud-Managed MPSK.”
* ArubaOS 10 WLAN Configuration Guide – “MPSK Modes (Local, ClearPass, Cloud Authentication) and Use Cases.”

QUESTION 70

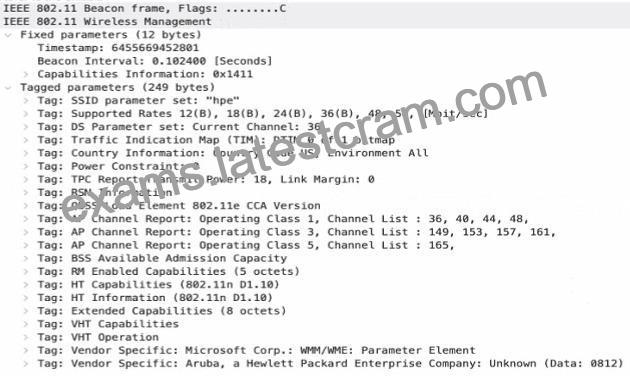

Exhibit.

Which statement is true?

The SSID supports HR-DSSS data rates

The SSID is supports 6 GHz clients.

The SSID supports 802 11ax clients.

The SSID supports 802 11ac clients.

QUESTION 71
A customer is installing CX 6300 switches, mobility gateways, and AP-635s.
The customer’s VoIP system uses both wired and wireless handsets.
The handsets are configured to mark voice traffic using a DSCP value of 46.
The wireless handsets connect to a bridged SSID using WPA3-SAE.
What will allow the switch to honor the QoS mark set by the handset?

Configure Voice Wi-Fi Multimedia Share for DSCP 46 on the voice SSID

Activate UCC for the HPE Aruba Networking Central Group managing the APs

Enable QoS trust DSCP

Enable WMM on the voice SSID

Comprehensive and Detailed Explanation (Verified Extract from HPE Aruba Networking Switching Documentation) In Aruba AOS-CX switching environments, Quality of Service (QoS) allows the switch to prioritize certain types of traffic such as voice, video, or real-time applications.
When a connected endpoint (such as a VoIP phone or wireless handset) marks packets with DSCP = 46 (Expedited Forwarding for voice), the switch must trust these markings to maintain end-to-end traffic prioritization.
Key Concept: Trust Boundary
By default, Aruba switches do not trust incoming DSCP or 802.1p markings from end devices for security reasons.
To allow the switch to accept and act on these values, the QoS trust DSCP feature must be explicitly enabled on the relevant interface or globally.
Official Aruba AOS-CX Extract:
“The qos trust dscp command enables the switch port to honor the Differentiated Services Code Point (DSCP) markings received from connected devices. When trusted, packets maintain their QoS priority as they traverse the switch fabric.” When wireless handsets connect to a bridged SSID, their traffic is bridged locally at the access switch – meaning the switch sees the traffic directly from the AP. If the handset marks the packet with DSCP 46, enabling QoS trust DSCP ensures that the switch preserves that marking and applies the appropriate voice priority queue treatment.
This configuration ensures end-to-end QoS consistency between the wireless AP, mobility gateway, and wired switch.
Option Analysis:
* A. Incorrect – “Voice Wi-Fi Multimedia Share” is not a valid Aruba configuration feature; WMM shares QoS mapping but not DSCP trust.
* B. Incorrect – UCC (Unified Communications and Collaboration) enhances call visibility and diagnostics, not DSCP trust or QoS marking.
* C. # Correct – Enables the switch to trust and honor DSCP markings (such as DSCP 46) received from endpoints or bridged SSIDs.
* D. Incorrect – WMM (Wi-Fi Multimedia) is required for prioritization over wireless links, but since this is a bridged SSID, the DSCP markings must be honored at the switch, not just the AP.
# Final Verified answer: C
# Reference Sources (HPE Aruba Official Materials):
* Aruba AOS-CX Quality of Service (QoS) Configuration Guide
* ArubaOS 10 WLAN and Mobility Configuration Guide – QoS and WMM for Voice SSIDs
* Aruba Certified Switching Professional (ACSP) Study Guide – QoS Trust and Traffic Classification

QUESTION 72

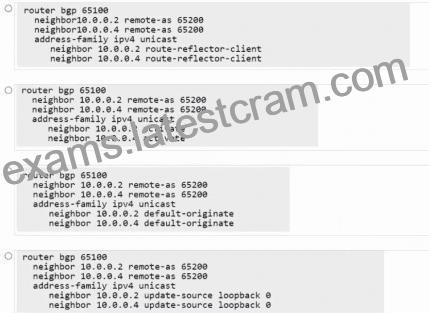

What should be defined on the Edge-1 to establish valid BGP routing between agg-sw1 and agg-sw2 using BGP protocol using the IP addresses above?

OPTION A

OPTION B

OPTION C

OPTION D

QUESTION 73
An ACME company employee complained about a recent poor-quality VoIP call while moving around their office environment HPE Aruba Networking Central reported a fair UCC score for this call while your VoIP engineer reported that their systems reported a MOS of 2, 3. The VoIP devices are operating over the 5GHz frequency band.
What are the possible contributing factors? (Select two.)

Coverage AP deployment plans generally don’t support enough cell overlap for VoIP.

802.tr is enabled in the WLAN Security settings.

There was localized interference at the caller’s location

802.1K is disabled in the WLAN Security settings

The client roamed into an area that continuously operates Zigbee.

QUESTION 74
What is the recommended configuration to ensure link aggregation is consistent in a campus topology using VSX with two aggregation switches and downlinks to access switches?

Use the command “vsx-sync active-gateways” under the VSX context.

Use a custom LACP hash algorithm for improved load balancing.

Use the command “vsx-sync mclag-interfaces” from the global context.

Use the command “vsx-sync mclag-interfaces” under the VSX context.

QUESTION 75
What directly affects the MCS used by wireless stations? (Select two.)

SNR

Channel utilization

Number of connected clients

Retry rate

Frequency band

QUESTION 76
A customer has recently deployed AP-615s at their new office and is wondering on which band the radios will operate with the default configuration after creating a tri-band SSID. What should you tell them?

The AP will operate on the 2.4GHz and 6GHz bands

The AP will operate on the 2.4GHz and 5GHz bands

The AP will operate on the 5GHz and 6GHz bands

6GHz will not be used unless manually configured

QUESTION 77
Anetworkadministrator accesses HPE Aruba Networking Central and notices that visitors consume too much internet bandwidth starving employee traffic when accessing an external service.Therefore,the administrator wants to limitwireless bandwidth to 60 Mops in both directions among all users in the voice rote and no more than 10 Mops in both directions for YouTube traffic. Deep packet inspection, web contentclassification, andfirewall visibility are enabled.
Which configurations are required to accomplish this task? (Select two.)

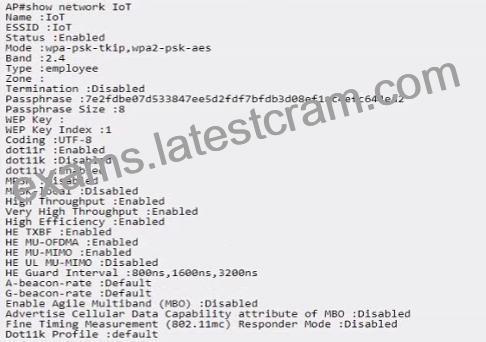

QUESTION 78
Exhibit.

Which statement is true?

The SSID supports RC4 encryption.

The SSID supports 802.11nac clients.

The SSID supports implicit beamforming.

The SSID supports sending neighbor reports.

QUESTION 79
Which statement about the AOS-CX VOQ feature is true?

It enhances local prioritization of datagrams marked with priority code points

It provides ingress buffers with queues for each egress port to reduce risk of dropped packets

It optimizes LACP uplinks that connect to multi-chassis VSX LAGs

It dynamically allocates extra buffer space to egress queues to reduce the potential of dropped packets

QUESTION 80

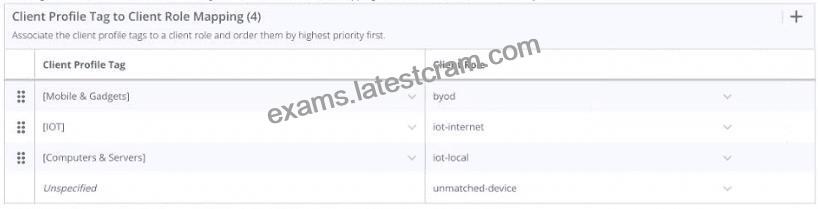

You configured a WPA3-SAE with the following MAC Authentication Role Mapping in Cloud Authentication and Policy:

With further default settings assume a new Android phone is connected to the network. Which role will the client be assigned after connecting for the first time?

byod

client will be rejected network access

lot-local

unmatched-device

QUESTION 81
A customer reports that their HPE Aruba Networking ClearPass Guest captive portal is not functioning. The page loads but they are unable to browse after pressing connect. They have uploaded a valid and publicly trusted *. aruba-training.com certificate.

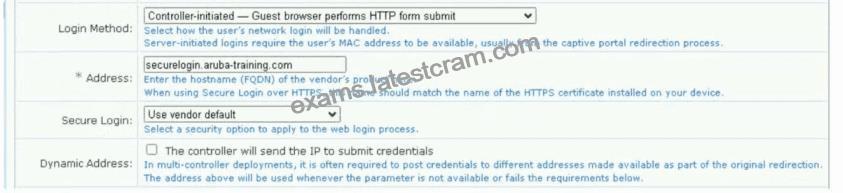

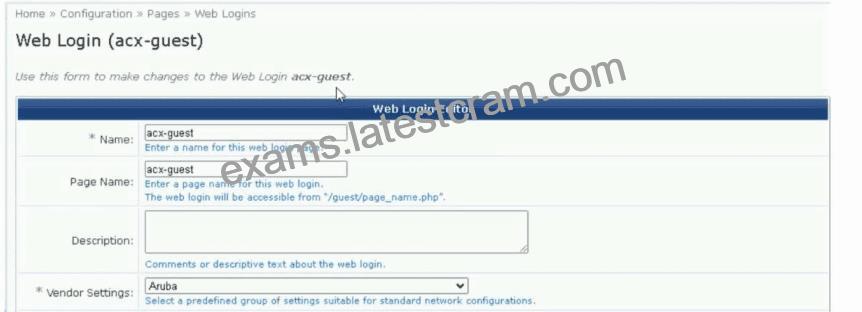

Refer to the exhibit.

Which would explain this issue?

aruba-training.com needs to be entered in the Address field for the ClearPass Guest

captiveportal-login.aruba-training.com needs to be entered in the Address field for the ClearPass Guest

HTTPS certificate is not required in ClearPass Guest

HTTPS wildcard certificates are not supported

In HPE Aruba ClearPass Guest configuration, the “Address” field defines the Fully Qualified Domain Name (FQDN) of the captive portal server that users are redirected to when accessing the guest network.
When a wildcard certificate is used, such as *.aruba-training.com, the derived FQDN for the captive portal redirection automatically becomes:
captiveportal-login.aruba-training.com
This naming convention is required so that the Common Name (CN) or Subject Alternative Name (SAN) in the SSL certificate matches the domain presented to the client browser during HTTPS redirection.
If the “Address” field is incorrectly configured with just aruba-training.com, the certificate and the redirection URL will not match, causing the browser to block or fail the authentication process. This results in users being unable to browse after pressing Connect on the portal page.
HPE Aruba documentation states:
“When using a wildcard certificate (for example CN = *.domain.com) on ClearPass Guest, the web login redirection address must be configured as captiveportal-login.domain.com to ensure the HTTPS certificate name matches the redirection hostname.”
“If the address field does not match the derived hostname of the certificate, browser trust validation fails and users cannot proceed beyond the captive portal page.” Additionally, the ArubaOS and ClearPass Guest deployment guide clarifies that wildcard certificates are fully supported for guest portals, provided that the Address field follows the proper naming pattern.
Incorrect Configurations:
* Setting “Address” to aruba-training.com causes SSL mismatch errors.
* Leaving the “Address” blank defaults to a local IP or hostname mismatch.
Correct Configuration:
* “Address” should be set to captiveportal-login.aruba-training.com when the wildcard certificate is *.
aruba-training.com.
Option Explanations:
* A. Incorrect – this does not follow the certificate’s derived FQDN format.
* B. Correct – matches the expected derived FQDN for wildcard certificates.
* C. Incorrect – HTTPS certificates are required for secure guest portals.
* D. Incorrect – Wildcard certificates are supported by ClearPass Guest and ArubaOS.
Final Verified answer: B
Reference Sources (HPE Aruba Networking Official Materials):
* Aruba ClearPass Guest Configuration and Deployment Guide
* ArubaOS 8.x User Guide – Captive Portal and Authentication Configuration
* HPE Aruba ClearPass Certificates 101 Technical Note
* ArubaOS-Switch and ClearPass Integration Guide

QUESTION 82
A customer is evaluating device profiles on a CX 6300 switch. The test device has the following attribute:
* MAC address = 81:cd:93:13:ab:31
The test device needs to be assigned the “iot-prod” role. In addition, the “iot-default” role must be applied for any other device connected to interface 1/1/1.
This is a lab environment with no configuration of any external authentication server for the test.

Given the configuration example, what is required to meet this testing requirement?

Enter the command port-access onboarding-method precedence to set device profiles with a higher precedence

Enter the command port-access device-profile mode block-until-profile-applied globally

Enter the command port-access fallback-role iot-default globally

Enter the command port-access onboarding-method precedence to set device profiles with a lower precedence

QUESTION 83
A customer wan a gateway connected to a device on gigabitethernet0/0/3 configures an Asset ID TLVon the device for inventory management.

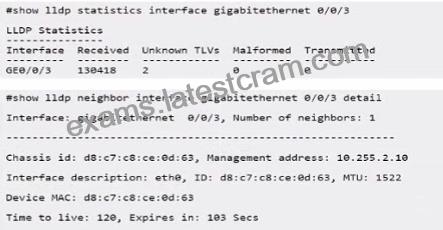

Exhibit.

The customer mentions me Asset ID is not shown What is causing the issue?

LLDP TX is not enabled.

LLPD-MED needs to be enabled.

MTU size is too small.

Unknown TLVs cannot be displayed.

QUESTION 84

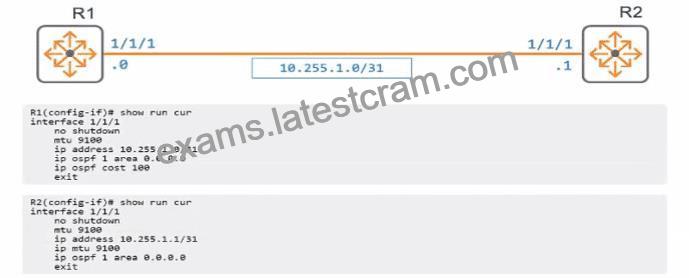

Exhibit.

An engineer has applied the above configuration to R1 and R2 However the routers OSPF adjacency never progresses past the “EXSTART-DR” slate as shown below.

Which configuration action on either router will allow R1 and R2 to progress past the “EXSTART/DR” state?

Change R1 and R2 to a network type of point-to-point.

Remove the layer 3 MTU configuration.

Ensure the OSPF process is not configured with passive-interface default.

Change the IP address and mask applied to interface 1/1/1.

QUESTION 85
What directly affects the MCS used by wireless stations? (Select two.)

SNR

retry rate

channel utilization

number of connected clients

frequency band

QUESTION 86
You recently added ClearPass as an authentication server to an HPE Aruba Networking Central group.
RADIUS authentication with Local User Roles (LUR) works fine Out the same access points cannot use Downloadable User Roles (DUR).
What should he corrected in this configuration to fa the issue with DUR?

Add a new Enforcement Policy of type ”WEBAUTH”on ClearPass and associate it with the matching service on ClearPass

Add the correct IP addresses or IP subnets of the Network Access Devices(NADs) under the “Devices” tabon ClearPass

Replace the AP’s expiree digital certificate using the “crypto pki-import pem serverCert” command.

Add the correct values for “CPPM username” and “CPPM Password” m the authentication server configuration on HPEAruba Networking Central

QUESTION 87
A customer is planning to add loT devices that connect wirelessly to the existing 802.1X SSlD. The customer will use ClearPass to authenticate the IoT devices by MAC address but other devices will still need to authenticate by only 802 1X Exhibit.

The customer provided the current configuration and reported their non-loT 802. IX devices are no longer able to connect. Which configuration change can be made to fix the issue?

Modify opmode wpa3-aes-gcm-256 to opmode wpa2-aes

Add i2-autn-fairtnrougn to the WLAN configuration

Remove mac-authentication from the WLAN configuration

Modify max-authentication failures to 0.
