NSE6_WCS-7.0 Study Guide: Latest [Jul 25, 2025] Realistic Verified NSE6_WCS-7.0 Dumps

NSE6_WCS-7.0 Questions & Practice Test are Available On-Demand

Q16. As part of the security plan you have been tasked with deploying a FortiGate in AWS.
Which two are the security responsibility of the customer in a cloud environment? (Choose two.)

Virtualization platform

Traffic encryption

User management

Storage infrastructure

Q17. An administrator must deploy a web application firewall (WAF) solution to protect the web applications of their organization.
Why would the administrator choose FortiWeb Cloud over AWS WAF with Fortinet managed rules?

WAF signatures must be manually updated by FortiGuard.

The solution must meet PCI 6.6 compliance.

SSL inspection is a requirement.

Traffic must be inspected for malware.

* SSL Inspection Requirement:
* FortiWeb Cloud provides comprehensive SSL inspection capabilities, allowing it to decrypt and inspect HTTPS traffic for threats. This is a crucial feature for many organizations that need to ensure all traffic, including encrypted traffic, is thoroughly inspected (Option C).
* Comparison with AWS WAF:
* While AWS WAF with Fortinet managed rules provides robust protection, it might not offer the same level of SSL inspection capabilities as FortiWeb Cloud.
* Other Considerations:
* Option A (Manual WAF signature updates) is incorrect because FortiWeb Cloud updates signatures automatically.
* Option B (PCI 6.6 compliance) is a general requirement for any WAF solution, not specific to choosing FortiWeb Cloud over AWS WAF.
* Option D (Traffic inspection for malware) is a feature provided by both FortiWeb Cloud and AWS WAF with Fortinet managed rules.
References:
* FortiWeb Cloud Overview: FortiWeb Cloud
* AWS WAF Documentation: AWS WAF

Q18. Your company deployed a FortiSandb0X for AWS.
Which statement is correct about FortiSandbox for AWS?

FortiSandbox for AWS does not need more resources because it performs only management and analysis tasks.

The FortiSandbox manager is installed on AWS platform and analyzes the results of the sandboxing process received from on-premises Windows instances.

FortiSandbox for AWS comes as hybrid solution. The FortiSandb0X manager is installed on-premises and analyzes the results Of the sandboxing process received from AWS EC2 instances

FortiSandbox deploys new EC2 instances with the custom Windows and Linux VMS, then it sends malware, runs it, and captures the results for analysis.

Q19. Which three statements are correct about VPC flow logs? (Choose three.)

Flow logs do not capture traffic to and from 169.254.169.254 for instance metadata.

Flow logs can capture traffic to the reserved IP address for the default VPC router.

Flow logs do not capture DHCP traffic.

Flow logs can capture real-time log streams for the network interfaces.

Flow logs can be used as a security tool to monitor the traffic that is reaching the instance.

Q20. Which three statements are correct about AWS security groups? (Choose three)

a Security group rules are always permissive: you cannot create rules that deny access.

By default, security groups block all outbound traffic.

When associate multiple security groups With an instance, the rules from each security group are effectively aggregated to create one set Of rules

Security groups are statetul

By default,security groups allow all inbound traffic.

Q21. An MSSP deployed 16 FortiGate VMS With the default AWS security groups and network access lists using an on-demand license from Amazon Web Services (AWS) Marketplace. They are using a third- party configuration backup application to back up and track changes for the FortiGate configurations. It can connect to the FortiGatedevices using only the SSH protocol, A customer is using the correct username and password configured on the FortiGate devices. but they are unable to log in using the SSH protocol.
What can be the reason Why this authentication is failing?

The default AWS network access list for FortiGate does not allow SSH.

The AWS key is required to log in to FortiGate using SSH

AWS uses non-standard SSH port1025, and the default AWS security groups and NACL for FortiGate are not configured for the port.

The default AWS Security group for FortiGate does not allow SSH.

Q22. You want to deploy FortiGate for AWS to protect your production network in the cloud. but you do not need the 2417 support available in the enterprise bundle.
Which license model do you choose?

pay as you go (PAYG).

Bring your own device (BYOD)

Bring your own license (BYOL).

Pay as a bundle (PAYB).

Q23. Refer to the exhibit.

Which statement is correct about the VPC peering connections shown in the exhibit?

You can associate VPC ID pcx-23232323 with VPC B to form a VPC peering connection between VPC B and VPC C.

You cannot route packets directly from VPC B to VPC C through VPC A.

TO route packets directly from VPC B to VPC C through VPC A, you must add a route for network 192.168.0.0/16 in the VPC A routing table.

You cannot create a VPC peering connection between VPC B and VPC C to route packets directly.

Q24. What is a drawback of deploying a FortiWeb VM inside a virtual public cloud (VPC) compared to FortiWeb Cloud?

It is unable to support web applications from OWASP Top 10 threats.

It does not support zero-day protection.

It is slower than FortiWeb Cloud to apply advanced WAF protection.

Only applications going through the VPC are protected.

* VPC-Scoped Protection:
* When deploying a FortiWeb VM inside a Virtual Private Cloud (VPC), the security and protection it offers are limited to the applications and traffic that pass through that specific VPC.
This means that any applications outside this VPC will not benefit from the protection of FortiWeb VM (Option D).
* Comparison with FortiWeb Cloud:
* FortiWeb Cloud, being a cloud-native WAF-as-a-Service, can protect applications regardless of their VPC location, offering broader and more flexible protection capabilities.
* Other Options Analysis:
* Option A is incorrect because both FortiWeb VM and FortiWeb Cloud protect against OWASP Top 10 threats.
* Option B is incorrect because FortiWeb VM does support zero-day protection.
* Option C is incorrect as the performance of FortiWeb VM in applying advanced WAF protection is not inherently slower compared to FortiWeb Cloud.
References:
* FortiWeb Overview: FortiWeb

Q25. An administrator wants to deploy a solution to automatically create firewall rules on FortiGate to accelerate time-to-protection for threats.
Which AWS service can be integrated with FortiGate to accomplish this?

AWS Firewall Manager

AWS network access control list

SDN Connector for AWS

AWS GuardDuty

* AWS GuardDuty Integration:
* AWS GuardDuty is a threat detection service that continuously monitors for malicious activity and unauthorized behavior to protect AWS accounts and workloads. It can generate findings that can be used to create or update firewall rules automatically in FortiGate to enhance security and provide timely protection (Option D).
* Integration with FortiGate:
* GuardDuty findings can be integrated with FortiGate using automation tools and scripts to create firewall rules dynamically, thereby accelerating the time-to-protection against emerging threats.
* Other Options Analysis:
* Option A (AWS Firewall Manager) is more suited for managing rules across multiple accounts but not for dynamic threat response.
* Option B (AWS Network ACL) provides stateless filtering but does not offer automated rule creation.
* Option C (SDN Connector for AWS) helps in integrating SDN capabilities but is not specifically focused on threat-based rule automation.
References:
* AWS GuardDuty: AWS GuardDuty
* FortiGate Integration: Fortinet Integration

Q26. Which three Fortinet products are available in Amazon Web Services in both on-demand and bring your own license (BYOL) formats? (Choose three.)

FortiGate

FortiWeb

FortiADC

FortiSlEM

FortiSOAR

Q27. Which three statements are correct about Amazon Web Services networking? (Choose three.)

You can configure instant IP failover in AWS.

You cannot configure gratuitous ARP but you can configure proxy ARP.

You cannot deploy FortiGate in transparent mode in AWS.

You cannot use custom frames in AWS

You can use unicast the FGCP protocol

Q28. You are network connectivity issues between two VMS deployed in AWS. One VM is a FortiGate located on subnet *LAN- that is part Of the VPC “Encryption”. The Other VM is a Windows server located on the subnet “servers” Which is also in the “Encryption” VPC. You are unable to ping the Windows server from FortiGate.
What is the reason for this?

You have not created a VPN to allow traffic between those subnets.

By default. AWS does not allow ICMP traffic between subnets.

The default AWS Network Access Control List (NACL) does not allow this traffic.

The firewall in the Windows VM is blocking the traffic.

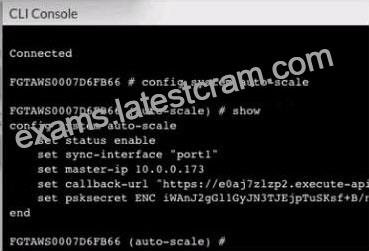

Q29. Refer to the exhibit.

You have created an autoscale configuration using a FortiGate HA Cloud Formation template. You want to examine the autoscale FortiOS configuration to confirm that FortiGate autoscale is configured to synchronize primary and secondary devices. On one of the FortiGate devices, you execute the command shown in the exhibit.
Which statement is correct about the output of the command?

The device is the primary in the HA configuration. with the IP address 10.0.0.173.

The device is the secondary in the HA configuration, and the IP address Of the primary device is
10.0.0.173.

The device is the primary in the HA configuration and the IP address of the secondary device is10.0.0.173.

The device is the secondary in the HA configuration. with the IP address 10.0.0.173.

Q30. A customer is attempting to deploy an active-passive high availability (HA) cluster using the software-defined network (SDN) connector in the AWS cloud.
What is an important consideration to ensure a successful formation of HA, failover, and traffic flow?

Both cluster members must be in the same availability zone.

VDOM exceptions must be configured.

Unicast FortiGate Clustering Protocol (FGCP) must be used.

Both cluster members must show as healthy in the elastic load balancer (ELB) configuration.

* HA Cluster in AWS Cloud:
* Deploying an active-passive HA cluster in AWS requires careful consideration of the clustering protocol used to ensure seamless failover and traffic flow.
* Unicast FortiGate Clustering Protocol (FGCP):
* Unicast FGCP is specifically designed for environments where multicast traffic is not feasible or supported, such as in the AWS cloud. Using unicast FGCP ensures that heartbeat and synchronization traffic between the cluster members are managed correctly over unicast communication, which is suitable for AWS’s network infrastructure (Option C).
* Comparison with Other Options:
* Option A is incorrect because while placing both cluster members in the same availability zone might be required for certain configurations, it is not the critical factor for HA formation.
* Option B is incorrect as VDOM exceptions are not directly related to the successful formation of HA.
* Option D is incorrect because the ELB configuration checks are more about ensuring that the load balancer correctly routes traffic but do not specifically ensure HA formation and failover.
References:
* FortiGate HA in AWS Documentation: FortiGate HA
* Fortinet FGCP Details: FGCP Documentation

Q31. Which features are only available on FortiWeb when compared to Fortinet Managed Rules for AWS WAF?

FortiWeb meets PCI 6.6 compliance.

FortiWeb can scan web application vulnerabilities.

FortiWeb provides a WAF subscription (FortiGuard) option.

FortiWeb provides web application attack signatures.

Q32. Which AWS product integrates With FortiGate to automate security remediation for workloads running on the AWS platform?

AWS Protector

AWS Inspector

AWS Shield

AWS GuardDuty

Q33. A global organization with cloud networks deployed in several AWS regions wants to set up next-generation firewall (NGFW) protection using FortiGate Cloud-Native Firewall (CNF).
What are two deployment considerations for the organization? (Choose two.)

Only one CNF instance is required to protect all AWS regions.

More than one AWS account can be associated with a CNF instance.

They must choose AWS Firewall Manager to provision a CNF instance.

A CNF instance is required for each AWS region that must be protected.

Q34. A customer deployed Fortinet Managed Rules for Amazon Web Services (AWS) Web-Application Firewall (WAF) to protect web application servers from attacks.
Which statement about Fortinet Managed Rules for AWS WAF is correct?

It offers a negative security model.

It can provide Layer 7 DOS protection.

It can provide IP Reputation (WAF subscription FortiGuard).

It can perform bot and known search engine identification and protection

Q35. Your company deployed a FortiSandbox for AWS.
Which statement is correct about FortiSandbox for AWS?

FortiSandbox for AWS comes as a hybrid solution. The FortiSandbox manager is installed on-premises and analyzes the results of the sandboxing process received from AWS EC2 instances.

The FortiSandbox manager is installed on the AWS platform and analyzes the results of the sandboxing process received from on-premises Windows instances.

FortiSandbox for AWS does not need more resources because it performs only management and analysis tasks.

FortiSandbox deploys new EC2 instances with the custom Windows and Linux VMs, then it sends malware, runs it, and captures the results for analysis.

* FortiSandbox Deployment:
* FortiSandbox for AWS deploys new EC2 instances to create isolated environments where it can safely execute and analyze suspicious files. These instances run custom Windows and Linux virtual machines specifically configured for sandboxing (Option D).
* Sandboxing Process:
* The process involves sending potential malware to these isolated VMs, executing it, and monitoring its behavior to detect malicious activities. The results are then captured and analyzed to provide detailed threat intelligence.
* Other Options Analysis:
* Option A is incorrect because FortiSandbox for AWS operates entirely within the AWS environment and does not require an on-premises manager.
* Option B is incorrect as the FortiSandbox manager is not installed on the AWS platform for managing on-premises instances.
* Option C is incorrect because FortiSandbox requires sufficient resources to perform the actual sandboxing and analysis tasks.
References:
* FortiSandbox for AWS Documentation: FortiSandbox
* Sandboxing Concepts: Sandboxing

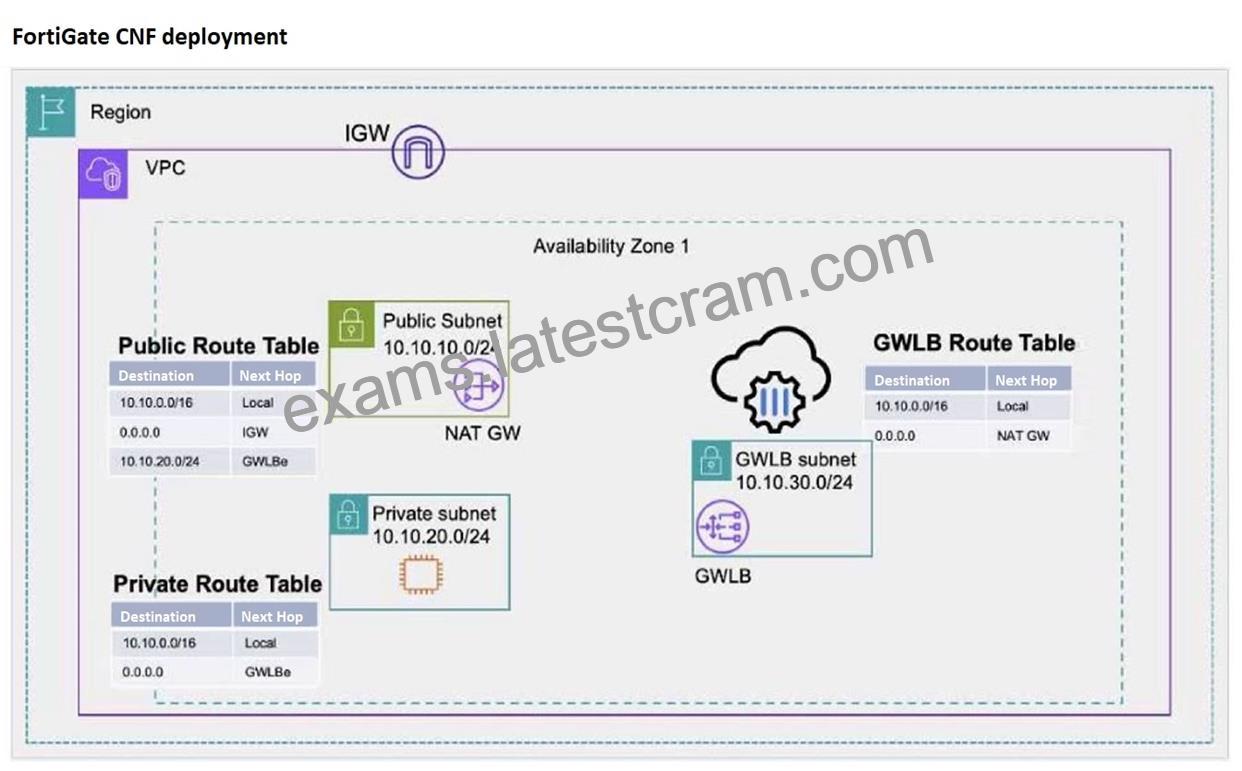

Q36. Refer to the exhibit.

Traffic is initiated from the EC2 instance and is destined for the internet.
Which traffic flow is correct?

EC2 instance > NAT GW > IGW > internet

There is no route to the internet in the Private Route Table. The traffic does not reach the internet.

EC2 instance > GWLBe > NAT GW > IGW > internet

EC2 instance > GWLBe > internet

* Understanding the Architecture:
* The architecture includes an EC2 instance in a private subnet, a Gateway Load Balancer Endpoint (GWLBe), a NAT Gateway (NAT GW), and an Internet Gateway (IGW).
* Route Tables and Routing:
* The private route table for the subnet containing the EC2 instance has a route pointing to the GWLBe for internet-bound traffic.
* The public route table for the subnet containing the NAT Gateway has routes to the IGW.
* Traffic Flow Analysis:
* Traffic initiated from the EC2 instance destined for the internet will first be routed to the GWLBe as per the private route table.
* The GWLBe will forward the traffic to the NAT Gateway.
* The NAT Gateway will then route the traffic to the IGW, which finally sends the traffic to the internet.
* Comparison with Other Options:
* Option A suggests direct routing to the NAT GW from the EC2 instance, which is incorrect.
* Option B incorrectly states there is no route to the internet in the private route table.
* Option D suggests direct routing from GWLBe to the internet, which is not the case.
References:
* AWS Documentation on Route Tables: AWS Route Tables
* Gateway Load Balancer Overview: AWS Gateway Load Balancer

Q37. What is the purpose of the created as part Of a FortiGate autoscale deployment using Fortinet cloud formation template in AWS?

To store information about varying states of auto scaling conditions.

To Store the information used for the scale set.

To store the traffic logs Of all FortiGates.

To store the firewall policies used by all FortiGates_

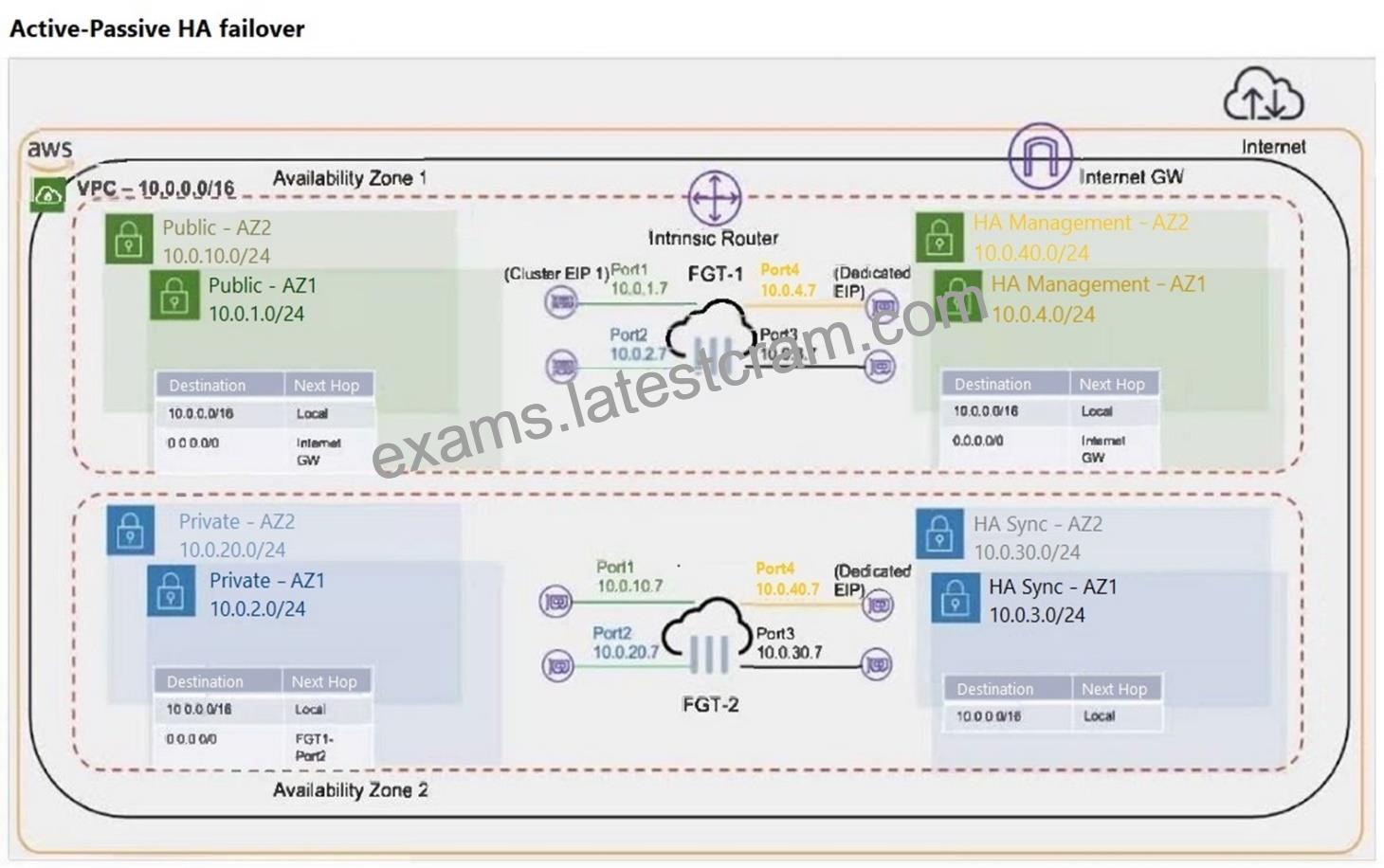

Q38. Refer to the exhibit.

What occurs during a failover for an active-passive (A-P) cluster that is deployed in two different availability zones? (Choose two.)

The cluster elastic IP address (EIP) is moved from Port1 of FGT-1 to Port1 of FGT-2.

The secondary IP address of Port2 of FGT-1 is moved to Port2 of FGT-2.

The default static route in the Private-AZ1 subnet route table is modified to forward all traffic to Port2 of FGT2.

An additional route is added to the route table of the HA Sync AZ2 subnet to forward all traffic to the Internet GW.

* Cluster Elastic IP Address (EIP) Movement:
* During a failover in an active-passive (A-P) cluster, the Elastic IP (EIP) associated with the active FortiGate instance (FGT-1) needs to be moved to the passive instance (FGT-2), which becomes the new active instance. This ensures that the traffic directed to the EIP is now handled by FGT-2 (Option A).
* Secondary IP Address Movement:
* The secondary IP address on Port2 of the current active instance (FGT-1) is moved to the same port on the new active instance (FGT-2). This step is crucial to ensure seamless network traffic redirection and connectivity for the services relying on that IP address (Option B).
* Other Options Analysis:
* Option C is incorrect because the static route modification mentioned is not directly related to the failover process described.
* Option D is incorrect because no additional route needs to be added to the HA Sync AZ2 subnet route table to forward traffic to the Internet Gateway during a failover.
References:
* FortiGate HA Configuration Guide: FortiGate HA
* AWS Elastic IP Documentation: Elastic IP

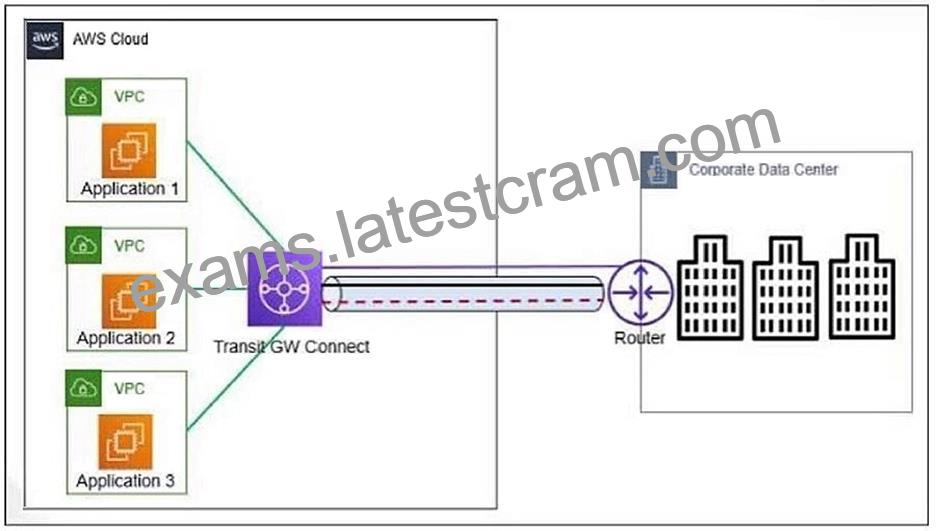

Q39. Refer to the exhibit.

An organization deployed the application servers in the AWS VPC that connects to the corporate data center using Transit Gateway Connect. Demand for the applications has grown and the connection requires more bandwidth.
What is required to achieve higher bandwidth?

Use routable public IP addresses instead of private IP addresses for connectivity.

You cannot increase bandwidth the connection has a fixed limit.

No configuration change is required because GRE tunnels are scaled to provide higher bandwidth.

You add a Transit VPC between the organization’s VPCs.

* Understanding Transit Gateway Connect:
* Transit Gateway Connect is a feature of AWS Transit Gateway that simplifies the integration of SD-WAN networks with AWS. It uses Generic Routing Encapsulation (GRE) tunnels to facilitate this connection.
* GRE Tunnels and Bandwidth:
* GRE tunnels can dynamically scale to meet increasing bandwidth demands. They allow multiple tunnels between the same endpoints, which can aggregate bandwidth without requiring additional configuration.
* Scaling Bandwidth with GRE:
* The GRE protocol used by Transit Gateway Connect can support high bandwidth requirements by spreading traffic across multiple tunnels. As demand grows, additional tunnels can be automatically used to handle the increased traffic load.
* Comparison with Other Options:
* Option A suggests using public IP addresses, which is not relevant to bandwidth scaling.
* Option B is incorrect because bandwidth can be increased through GRE scaling.
* Option D suggests adding a Transit VPC, which is unnecessary for increasing bandwidth when using Transit Gateway Connect.
References:
* AWS Transit Gateway Documentation: AWS Transit Gateway
* GRE Tunnels and AWS: AWS GRE Tunnels

Loading …

Valid NSE6_WCS-7.0 Exam Dumps Ensure you a HIGH SCORE: https://www.latestcram.com/NSE6_WCS-7.0-exam-cram-questions.html

Related Certifications

EX447 (1)
EX200 (1)

Free Cram & Latest Exams Dumps

NSE6_WCS-7.0 Study Guide Latest [Jul 25, 2025] Realistic Verified NSE6_WCS-7.0 Dumps [Q16-Q39]

leave a comment Cancel reply

Related Certifications

Recent Posts

Archives

Categories
